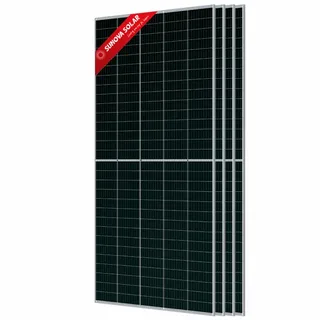

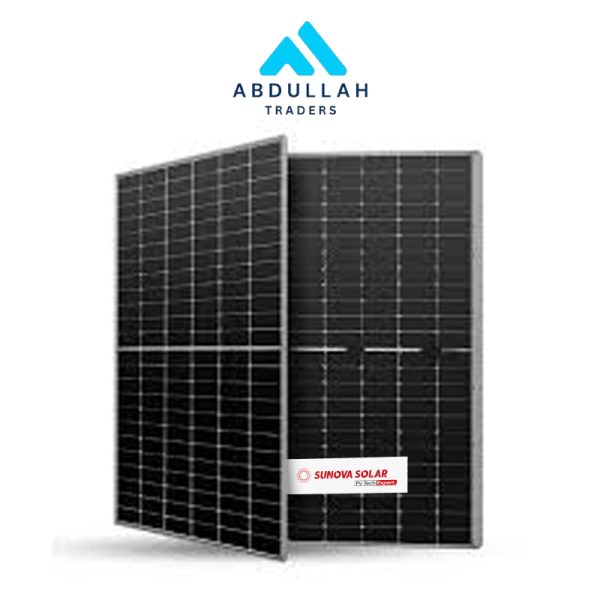

Sunova 570W Half-Cut Mono PERC Solar Panel | 156 Cells | High Efficiency
-
🔋 Power Output: 570W ultra high-performance
-
☀️ Efficiency: Up to 21.12% with lower Rs loss
-
🧊 Low Hotspot Risk: Special circuit design for better thermal control
-
🌊 Durability: Salt mist, fire safe (Class C), and wind load up to 5400 Pa
-
🧪 Double EL Tested: Guaranteed minimal cell cracks
Description
- Sunova Datasheet 565-590 Download Pdf
- Series: Sunova SS-570W 156-Cell Mono PERC Half-Cell Module
- High Efficiency: Up to 21.12% with half-cell mono PERC tech. Reduced series resistance and better shade tolerance.
- Robust Performance: -0.35%/°C temperature coefficient, power tolerance (0 ~ +5W), and outstanding NOCT results (420–439W).
- Electrical Specs (STC):
- Power Range: 565W to 590W
- Voc: up to 53.76V | Isc: up to 13.97A
- Vmp: 43.99–44.49V | Imp: 12.85–13.27A
- Mechanical Specs:
- Dimensions: 2464 × 1134 × 35 mm | Weight: 32.1 kg
- 156 Half-Cut PERC Monocrystalline Cells (182×91 mm)
- Glass: 3.2 mm AR-coated tempered glass
- Frame: Anodized aluminum alloy
- Connector: MC4 compatible | Cable: 4.0 mm² (300 mm standard)
- Certifications & Protection:
- ISO 9001, ISO 14001, OHSAS 18001
- Fire Rated (Class C), Salt-Mist Resistant (IEC61701), PID-Free
- IP68 Junction Box, TÜV Rheinland tested
- Warranty: 15 Years Product + 25 Years Linear Power Guarantee (≥84.8% output in 25 years)
- Applications: Ideal for utility-scale, C&I rooftops, and high-performance residential systems.
