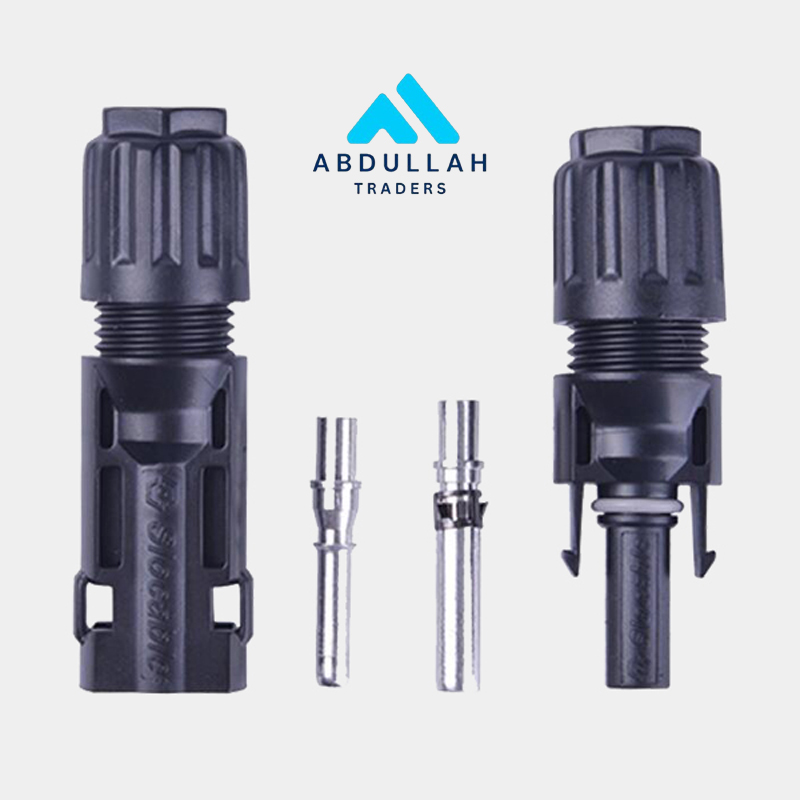

Solar MC4 Connector KA-29 2.5/4/6mm2 SOLID PIN
Main Features
- MC4 Cable Coupler Solar Connector
- Solid Copper, Silver Plated Pin Insert
- Simple On-Site Processing
- UV, Water Tight, Dust Resistance
- Degree of Protection: IP2*/IP67
- TUV & UL Approved
Description
SPECIFICATIONS
| Insulation Material | PPO |
| Rated Current | 30A (2.5mm2) 50A (4.0mm2, 6.0mm2) |
| Rated Voltage | 1500V DC |
| Test Voltage | 8kV (50Hz, 1min) |
| Contact Resistance | <5 |
| Contact Material | Copper, tin plated |
| Degree of Protection | IP2X / IP68 |
| Safety Class | II |
| Overvoltage Category / Pollution Degree | CATIII/2 |
| Flame Class | UL94-V0 |
| Insertion Force | Max. 50N |
| Withdrawal Force | Min. 50N |
| Ambient Temperature Range | -40oC… +85oC(ICE) |
| Suitable Cable Cross Section | 2.5/4.0/6.0/10.0mm2 14/12/10/8 AWG |
| Connection System | Crimp Connection |
