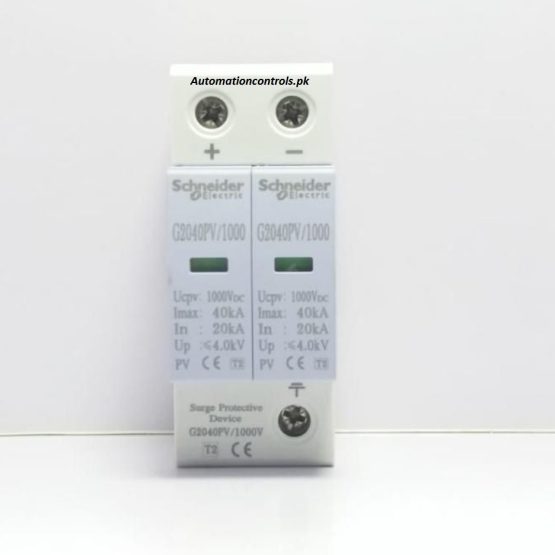

Schneider (G2040PV/1000) 2Pole 40kA DC (Surge Protection Device) SPD
Key Features:
-
Product: SPD Surge Protection Device
-
Model: G2040PV/1000
-
Rated Voltage: DC 500V
-
Voltage Type: DC
-
Number of Poles: 2 Pole
-
Ucpv: 1000V DC
-
Imax: 40kA
-
In: 20kA
-
Up: 4.0kV
-
Mounting: DIN Rail
-
Mostly Used For: Solar Systems
-
Cash on Delivery Available All Over Pakistan
Description
Description:
- G2040PV/1000 series PV Surge Protective Device 40KA DC 1000V SPD is suitable for the new energy wind power generation system
- Its working voltage covers 500V,800V and 1000V.
- It is installed at main power system at DC circuit,to protect from indirect lighting current, direct lighting current or other instantaneous over voltage.
- It has module design, convenient installation ,with easy electric maintains operation.
- Adopt independent intelligence property right and high performance sensitivity resistance plates
- Small creepage current, fast response time, remnant low voltage
