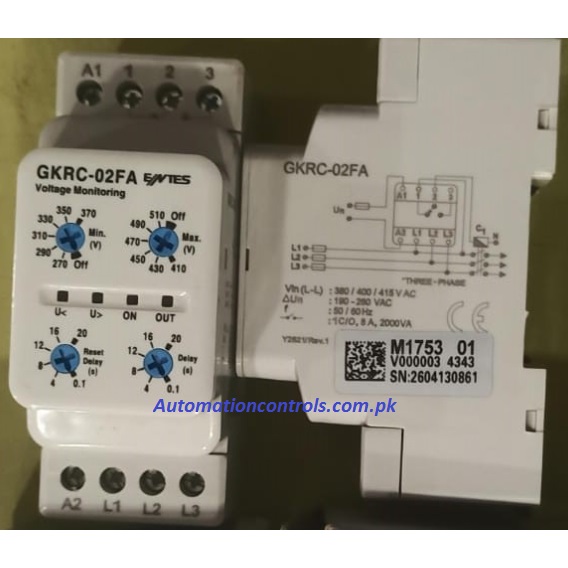

(Phase Sequence) Voltage Monitoring Device GKRC-02FA
Key Features:
- Product: Phase sequence/failure relay
Model: GKRC-02FA
Brand: ENTES
Under-voltage setting range: (0.70 0.95) x Un
Over-voltage setting range: (1.05 1.30) x Un
Immediate switch: 0.5 x U/1.5 x Un
Immediate switch period: 500 ms
Power supply: 3-phase
Operating voltage: 220/230V AC
Switching current: 8A
Minimum temperature: -5 C
Maximum temprature: +50 C
Timing: 0.1 to 10 sec
Mounting: 35mm DIN rail
- Adhesive Type: Pressure Sensitive
- Material: PVC
- Feature: Waterproof
- Color: Black
- Tape length: 10 yards
- Size: 8mil*18mm*10yds
Description
Description
-
- GKRC-02FA is a voltage monitoring relay for the protection of three-phase networks against power fluctuations and incorrect phase sequence.
- Faulty alarm responses due to voltage spikes are prevented by a switching delay (0.1 10 s).
- The relay switches immediately if the voltage of a phase exceeds or falls below the nominal voltage by more than 50%.
- These are mostly used in industries for the protection of heavy machinery and applications etc.
Features:
- Over-voltage protection
- Under-voltage protection
- Phase-failure protection
- Phase sequence protection
- Switch-off delay.
- Non-flammable case
