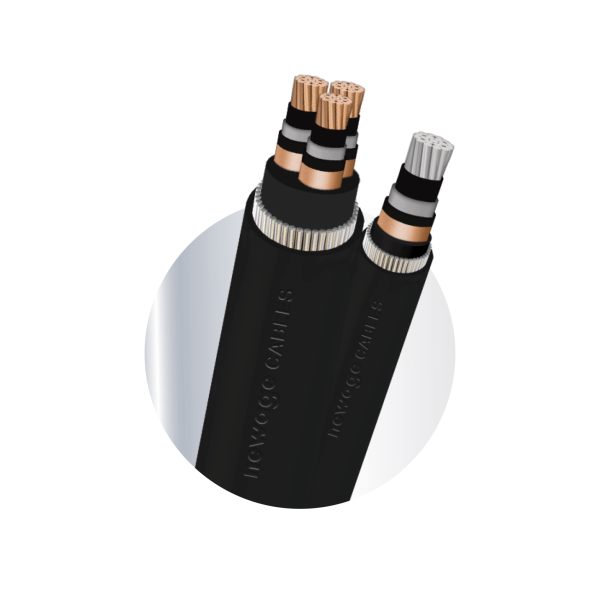

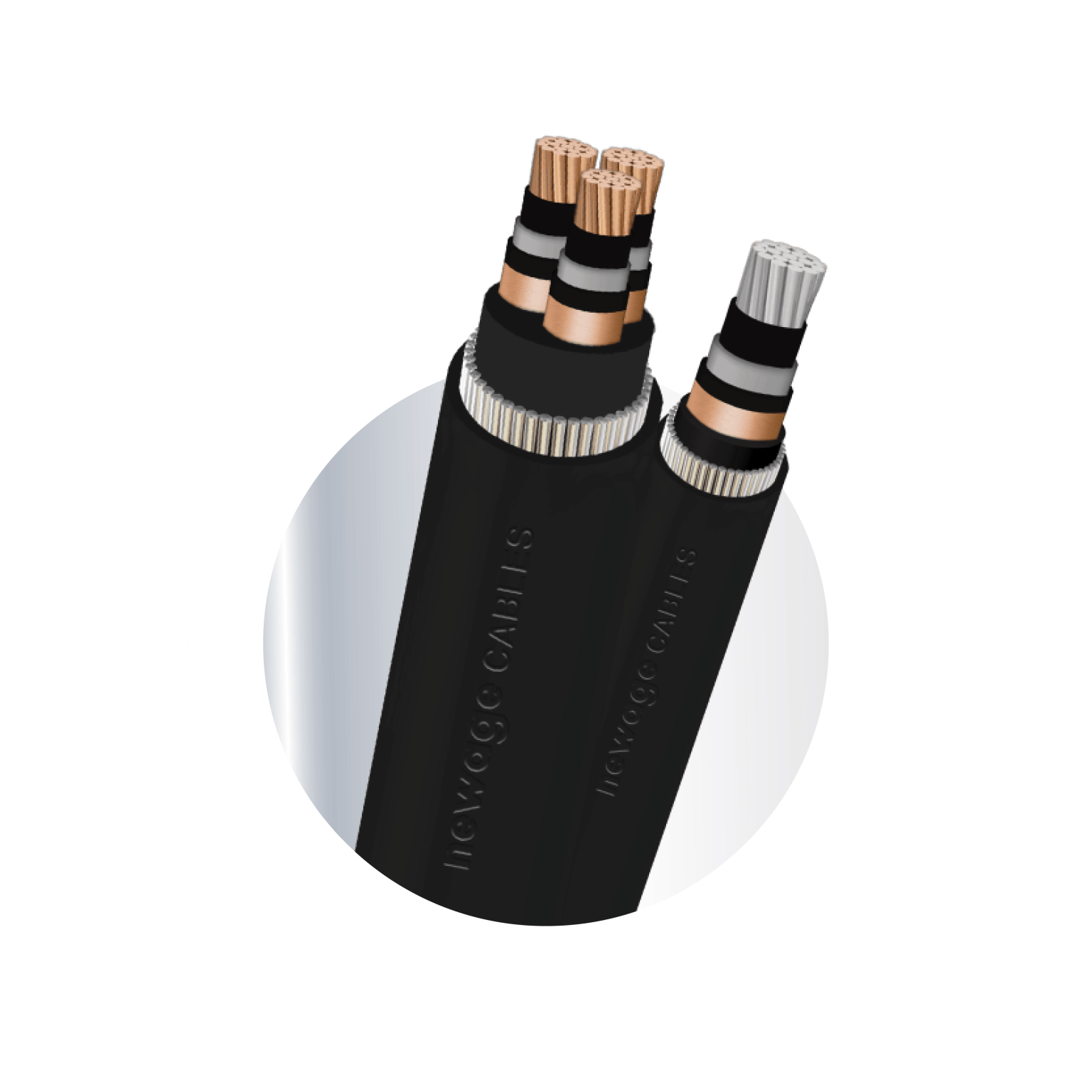

Medium Voltage Cables
Key Features:
-
Conductor: Cu / AL
-
Insulation: XLPE
-
Sheath: PVC / LSZH / MDPE
-
Available: Single Core / Multicore as required
-
Available: Armoured / Unarmoured as required
-
Size Range: 25 to 1000 mm²
-
Rated Voltage: 6KV to 33KV
-
Reference Standards: IEC 60502-2, 60228, 60332-1
Description
Description:
-
Minimum Service Temperature: -15°C
-
Conductor Operating Temperature: 90°C
-
Maximum Short-Circuit Temperature: 250°C
-
Flame Retardant
-
Suitable for Indoor/Outdoor Installation
