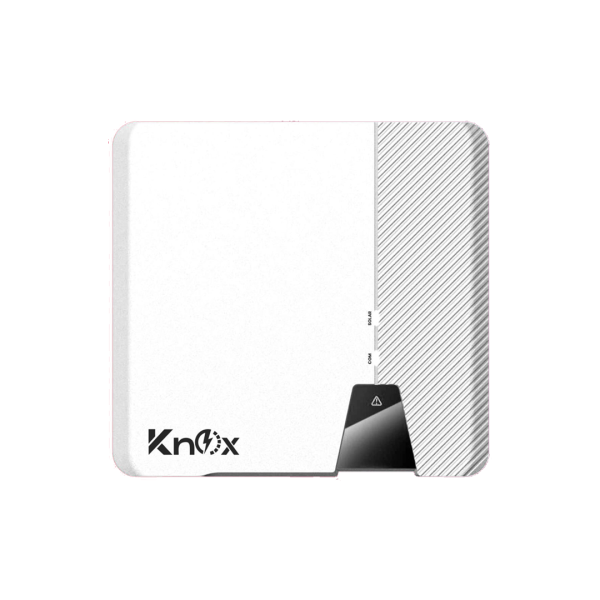

Knox 20KW ASW 20K-LT-G2 20 KW On Grid Inverter

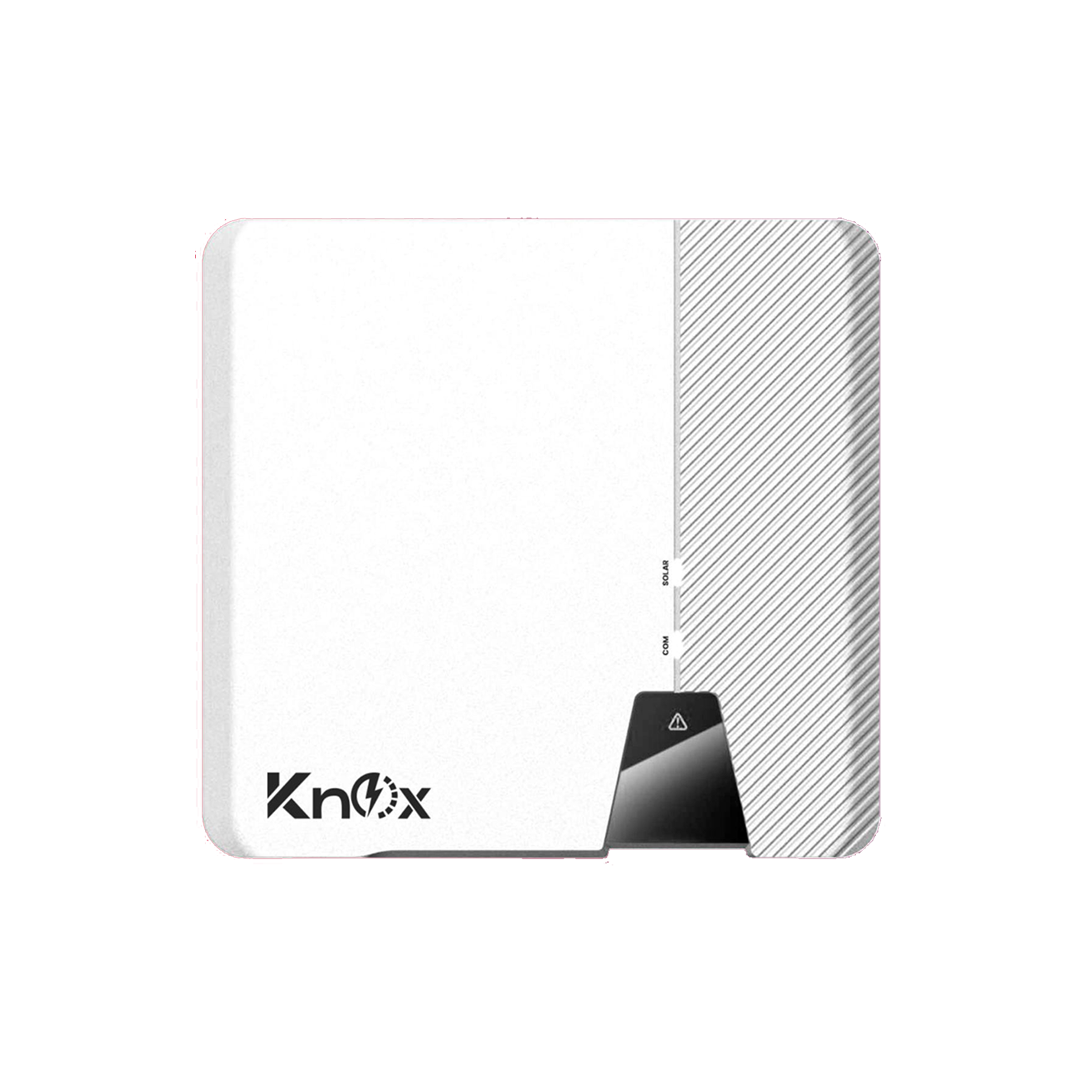

Knox 20KW ASW 20K-LT-G2 20 KW On Grid Inverter - Image 2

Knox 20KW ASW 20K-LT-G2 20 KW On Grid Inverter

  • Frequency

    • MPP Voltage range/ rated input voltage 150 V TO 1000 V/ 630 V

    Hardware Features

    • Input Current 26 A /26 A

    Output

    • Topology Transformerless
Categories: ,

Description

Click here for the datasheet

Technical Specification

  • AC Connection plug-in connector
  • AC Nominal Voltage 220 V/ 380 V -230 V / 400 V -240 V/ 425 V
  • DC Connection Phoenix Contact
  • Operating Altitude 3000 M
  • Rated Power 20000 W

General Specification

  • AC voltage range 160 V TO 300 V
  • Max Input Voltage 1100 V
  • Operating Temperature Range -25 C -+60 C
  • Protection Class I/AC: III; DC: II
  • Self Consumption <1W
  • Type Three Phase On Grid Solar Inverter
  • Weight 18.6 KG
  • Input Voltage 125 V
  • Dimension 503/ 435/ 183
