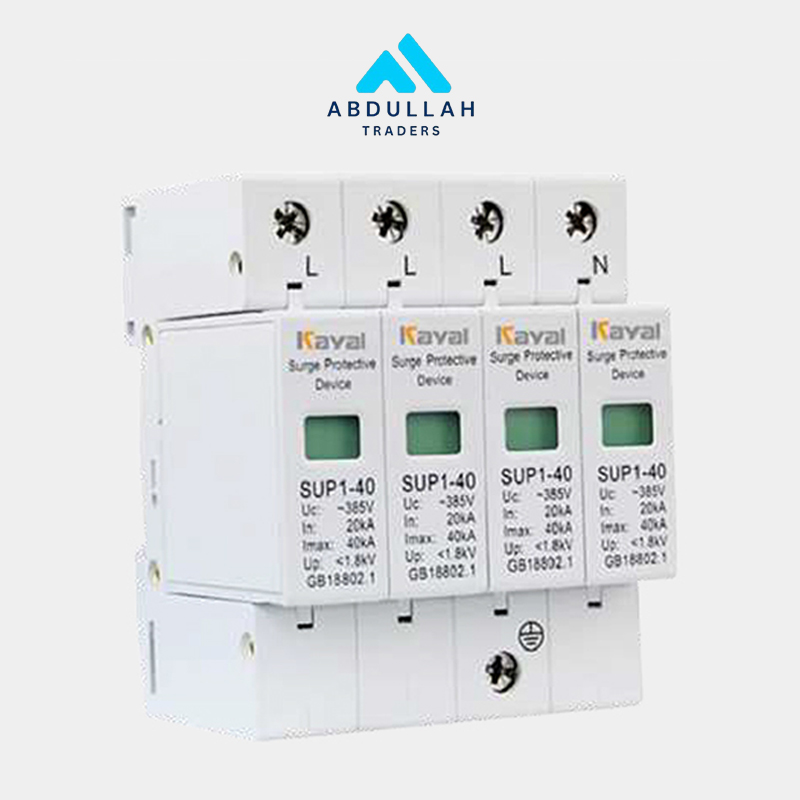

Kayal AC SPD 4 Pole 40K, 60K, 100k, For Phase 3
Main Features
- Conform to IEC61643-11 standards
- Common mode or Common + Differential mode protection
- Un Ac:500V
- Class 1/Type 1 and Class 2/Type 2 available
- High Performance Wire Frame
- Visuals Warning Module
- Red Copper Fittings
- Guide Rail Type Installation
- High Frame Retardant Materials
- Plug Type Module, Easy to Change
- Lightning Protection
- Low Residual Voltage
- Safe and Reliable
Description
Kayal AC SPD 4 Pole 40K, 60K, 100k, For Phase 3
KYV-LY1-C series Surge Protection are designed to protect against lighting surge voltages. These units must be installed in parallel on the AC networks to be protected and provide common and differential modes protection.
SPECIFICATIONS
| Category | Surge Protector |
| Brand | Kayal |
| Model | KYV-LY1-C |
| Nominal Voltage (Vac) | 500AC |
| MCOV(Ucpv)L-PE | 500VAC |
| Nominal Discharge Current (Ln’kA) | 20 |
| Max. Discharge Current (Lmax’8/20, kA) | 50 |
| Voltage Protection Level (Up@ln’kA) | <2.0 |
| Operation Temperature | -40℃ to 80℃ |
| ISCWPV (kA) | 10 |
| Application | Type 2 |
| Degree of Protection | IP20 |
