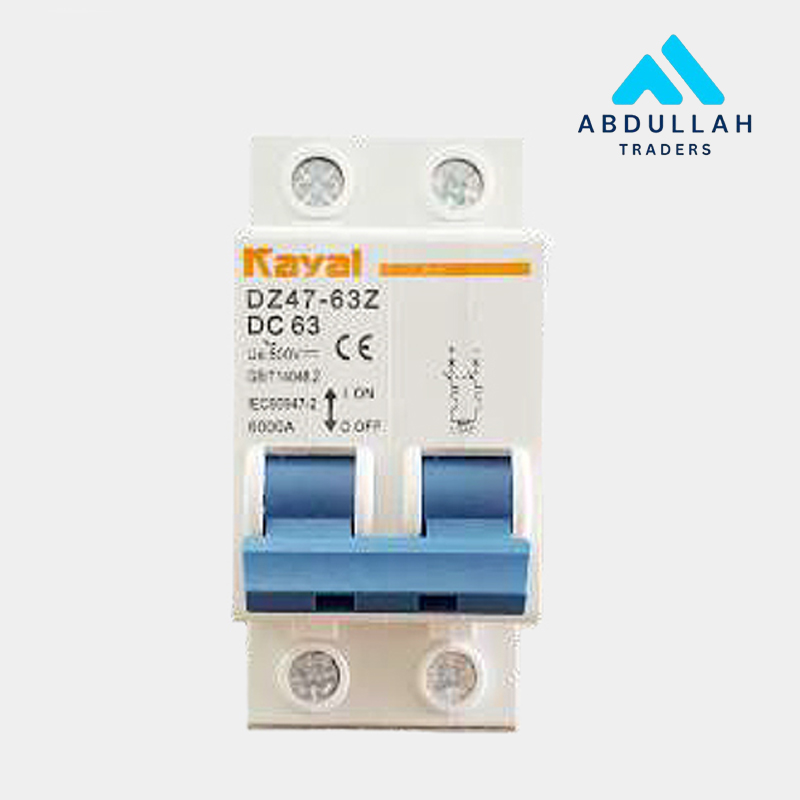

Kayal 1000V & 500V, DC MCB
Main Features
- The Guide Rail Type Installation
- Durable
- High Breaking Capacity
- Easy to Operate
- Stable Performance
- Rapid Arcing
- Modular from Shell
- Fire Retardant Casing Designed for DC Systems, it can realize functions such as control, overload protection and short circuit protection
Description
Kayal 1000V & 500V, DC MCB
Solar system DC MCB, apply to rating current 63A or less. It is mainly used for
overloading and short circuit protection in DC distribution system equipment and
electric equipment. It can be widely used in electric, post, traffic, mining enterprise
and different kinds of fields.
- Thermoplastic shell, full inlet, impact resistant, recyclable, self-extinguishing
- Super safety: classic U tunnel terminal, to ensure that the line connection is solid and reliable
- The original air flow, can effectively reduce the temperature between adjacent circuit breaker
- Safety handle, classic original design, ergonomic
Specifications
| Item | 1P | 2P | 3P | 4P |
|---|---|---|---|---|
| Voltage | 300VDC | 600VDC | 900VDC | 1200VDC |
| Current | 1A, 3A, 6A, 10A, 16A, 20A, 32A, 40A, 50A, 63A | |||
| Standard | IEC/EN60947 | |||
| Breaking Capacity | 6KA, 10KA | |||
| Characteristic Curve | B, C, D | |||
| Working Temperature | -5℃ to +40℃ | |||
| Protection Degree | IP20 | |||
| Electrical life | More than 8000 times | |||
| Mechanical life | More than 2000 times | |||
| Dimension (W×H×D) | 18×80×71 | 36×80×71 | 54×80×71 | 72×80×71 |
| Installation | 35MM DIN RAIL | |||
| Accessory | YES | |||
| Installation Altitude | ≤2000M | |||
