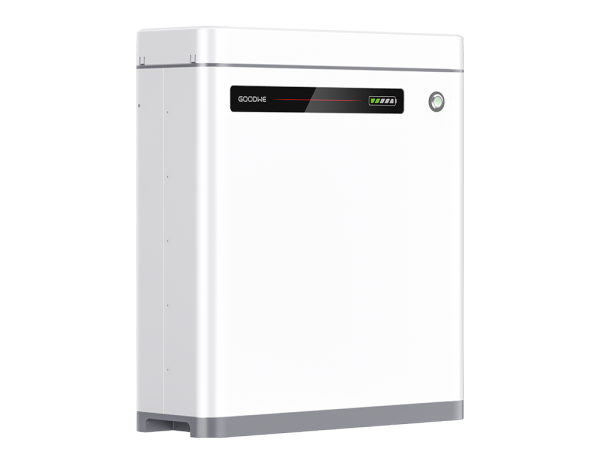

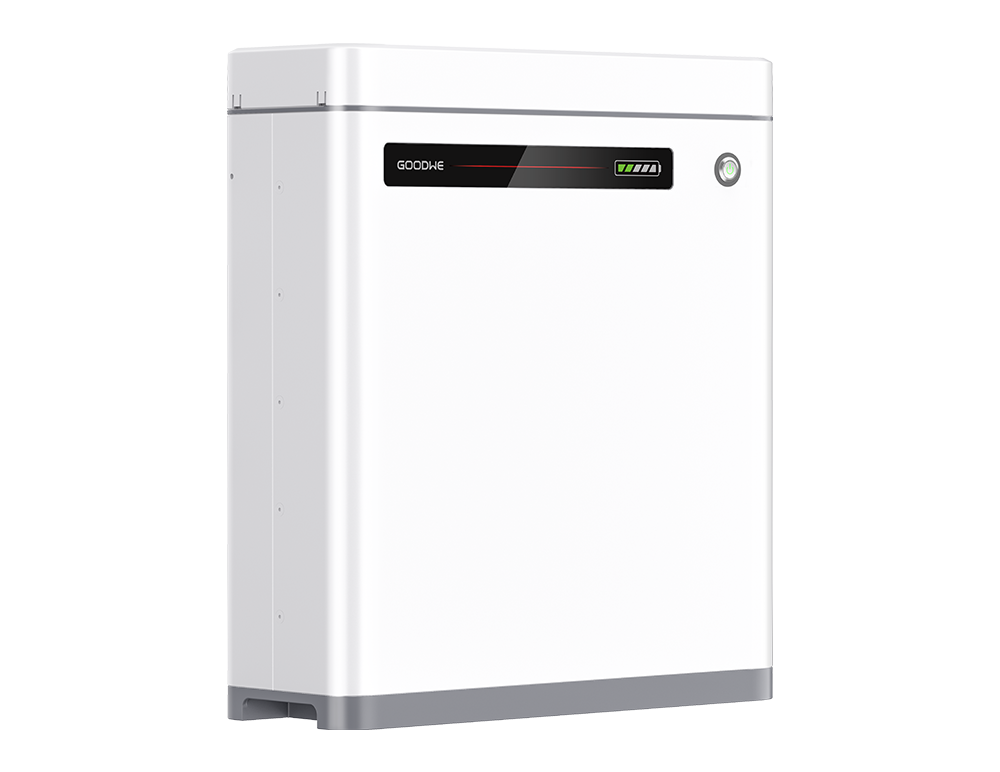

GoodWe Lynx A Series – 5kWh Low Voltage LFP Battery

Description

goodwe datasheet 5kw batteries download Pdf

The GoodWe Lynx A Series 5kWh Low Voltage Battery is a smart and reliable lithium iron phosphate (LiFePO₄) energy storage solution built for residential solar systems. It combines advanced safety features with compact design, making it ideal for maximizing self-consumption, providing energy backup, and enabling flexibility for future expansion.

🔋 Key Features:

• Safe & Durable Battery Technology

  • Uses Lithium Iron Phosphate (LFP) cells known for thermal stability and long life

  • Over 6000+ cycles at 90% depth of discharge (DOD)

  • IEC & UN-certified for safety, EMC, and transport

• Scalable System Architecture

  • 5kWh per module; expandable up to 75kWh (15 modules max)

  • Nominal Voltage: 51.2 V

  • Compatible with GoodWe residential storage inverters

• Smart Monitoring & Management

  • Remote diagnostics and firmware updates via inverter

  • Auto reboot after undervoltage

  • Built-in insulation resistance test for safety checks

• High Performance

  • Nominal Discharge/Charge Current: 60A per module

  • Nominal Output Power: 3kW per module (scalable with parallel connections)

  • Operating Temp: –10°C to +50°C (discharge)

• User-Friendly Design

  • Compact and wall-mountable (442×133×420 mm without hanger)

  • Lightweight: only 40 kg per module

  • Flexible installation: cabinet, floor-stack, or wall-mount

📦 Certifications & Compliance

• Safety: IEC62619, IEC63056, IEC62040-1

• EMC: EN IEC61000-6 series

• Transport: UN38.3, ADR

🌍 Use Case Scenarios

• Residential solar systems seeking energy independence

• Homes needing backup power during outages

• Customers prioritizing safety, smart control, and expandability
