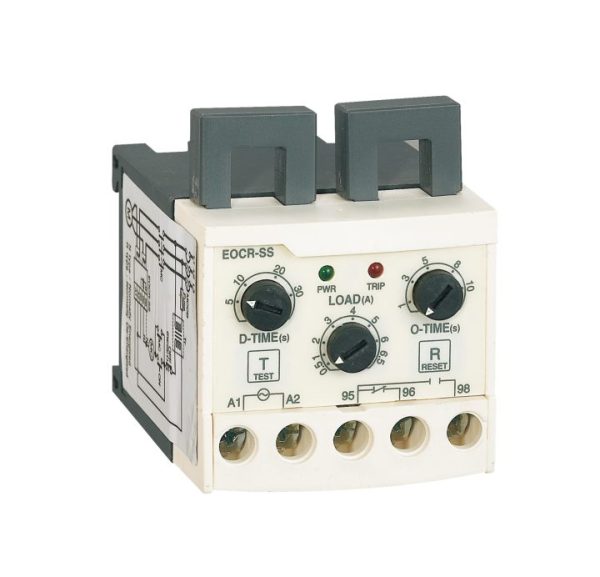

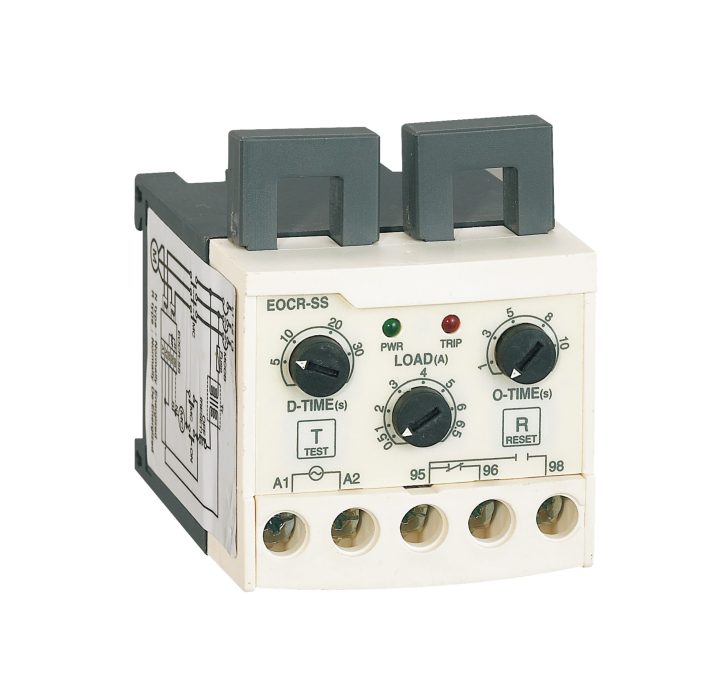

Electronic Over Load Relay (EOCR-SS)
Key Features:
Ampere Range optional: must write any one in additional information/order notes
- 0.5 to 6.5 Amp
- 5 to 70 Amp
Description
Description:
- Usage: Protective
- Contact Load: Low Power
- Theory: Electronic Overload Relay
- Model Number: EOCR-SS
- is_customized: Yes
- Protect Feature: Sealed
- Power Source: AC
- Power supply: 180v AC to 440v AC
- Current Range: 0.5A-6.5A and 5A-70A (both available)
- Time Characteristics:Definite Time
- Power Consumption:Under 2W
- Operation Time:0.2-30SECONDS O-TIME:0.2-10SECONDS
- Accuracy:plus minus 10% Time:plus minus 15% of max. time set value
- Size:Miniature
- Current Sensing:2 CTs
- Mounting:35mm Din Rail or Panel
- Reset:Manual or remote electrical by interrupting supply
