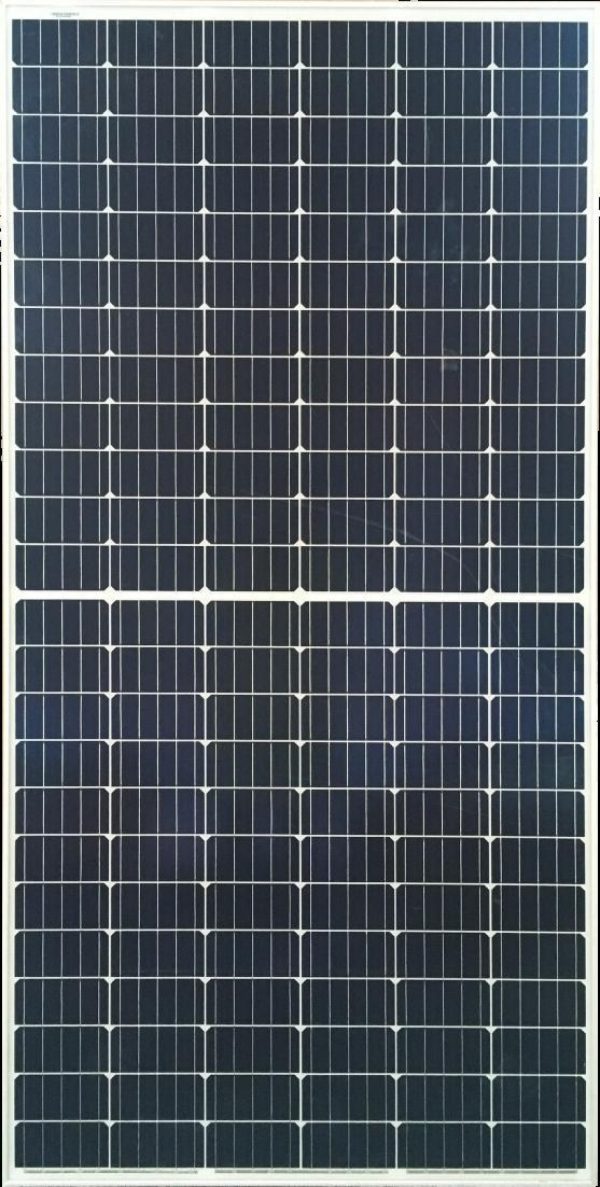

ASTRO N5(645 W)

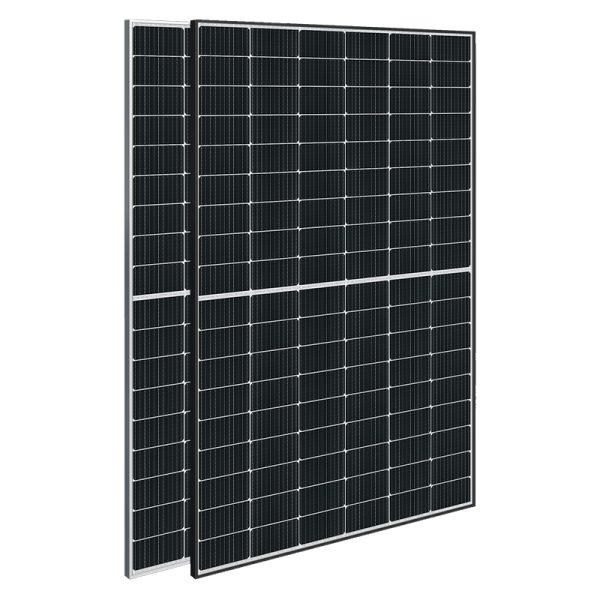

ASTRO N5(645 W) - Image 2

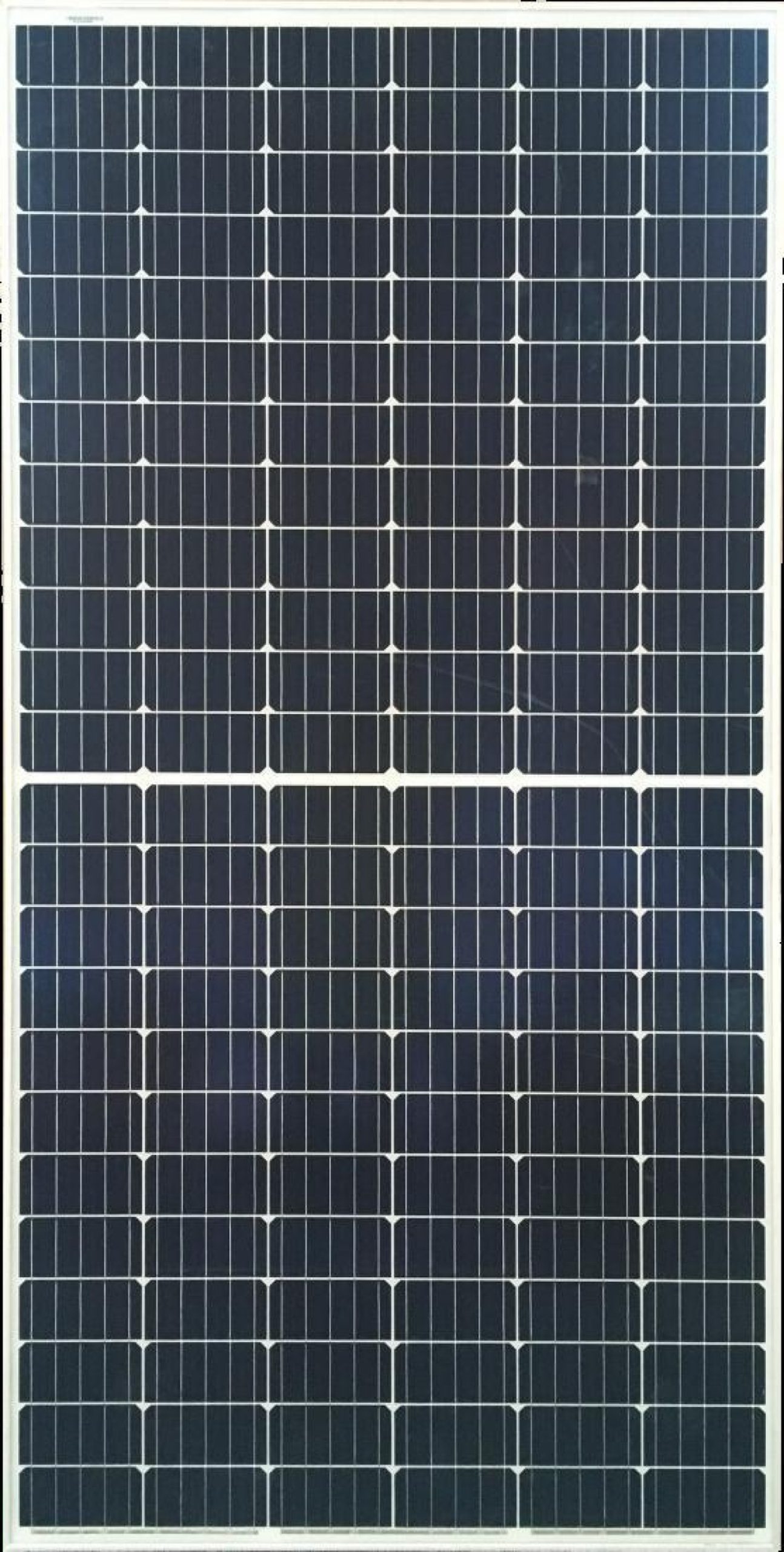

ASTRO N5(645 W) - Image 3

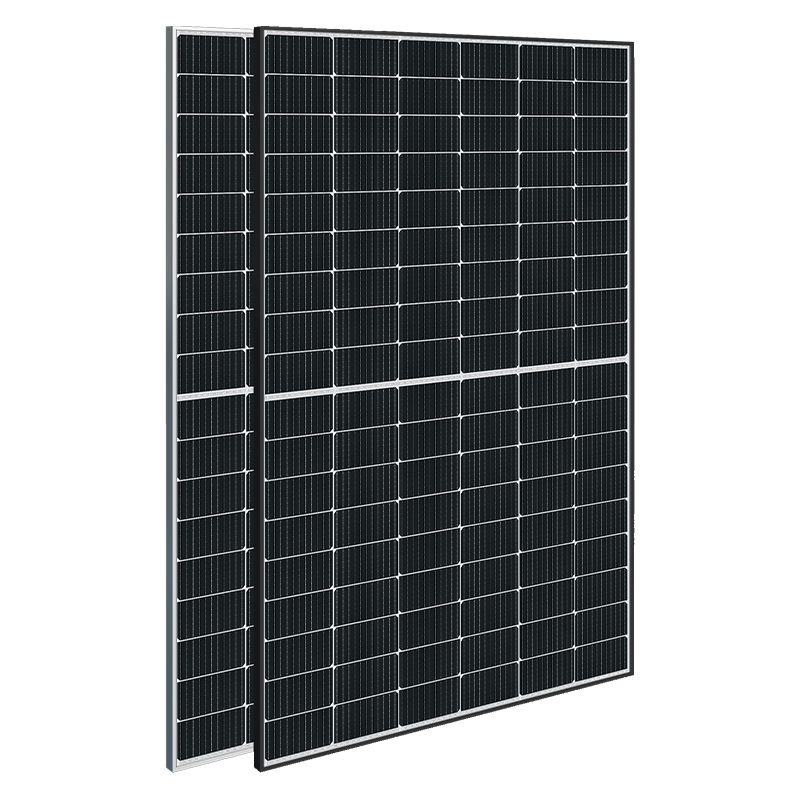

ASTRO N5(645 W) - Image 4

ASTRO N5(645 W)

• High-power 650W+ bifacial dual-glass panel
• Advanced N-type TOPCon / PERC cell tech
• Durable aluminum frame and tempered glass
• 30-year linear power & 15-year product warranty
• Ideal for large-scale and commercial solar projects

Categories: ,

Description

  • Download: 625–650 W ASTRO N5 datasheet
  • Module Dimensions: Approx. 2465 × 1134 × 30 mm
  • Weight: 32.5 kg – optimized for utility-scale installations
  • Glass: 2.0 mm + 2.0 mm dual-glass, high-transmission tempered glass
  • Frame: Anodized aluminum alloy, 30 mm height for durability and compatibility
  • Junction Box: IP68 rated, 3 diodes, split design for improved heat dissipation
  • Connector Type: MC4 compatible (Staubli or equivalent)
  • Mounting: Compatible with long-side and short-side mounting via clamp or bolt holes
  • Mechanical Load: 5400 Pa front load / 2400 Pa rear load certified
